High Precision RTK GNSS Antenna with L1/L2/L5 Support, IP67 Waterproof, and 30±3.0dB LNA Gain for Reliable GPS Reception

Brand Name : OTW

Model Number : WT-508

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : 59.9

Delivery Time : 5day

Contact Now

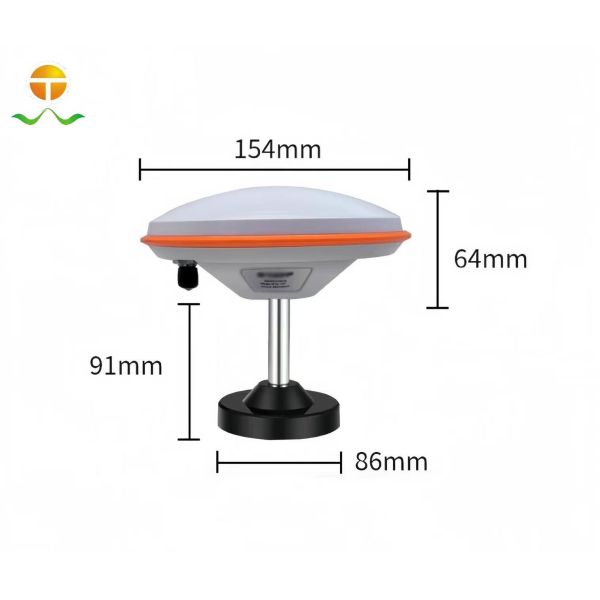

WT508 High Precision RTK GNSS Antenna

Full-band RTK GNSS antenna supporting L1/L2/L5 frequencies with powerful performance and competitive pricing. Ideal for precision agriculture applications requiring high-accuracy positioning.

Key Features

Multi-constellation support: Beidou, GPS, Galileo, GLONASS
L-band correction capability for enhanced accuracy
High gain performance with RHCP polarization
Compact, lightweight design for easy integration
IP67 waterproof rating for harsh environments

Antenna Characteristics

Model	WT508
Receiver Type	Beidou: B1/B2/B3, GPS: L1/L2/L5, Galileo: E1/E2/E5/E5a/E5b/E6, GLONASS: L1/L2/L3
Peak Gain	≥5 dBi
Polarization	RHCP
Axial Ratio @ Zenith	≤1.5dB
Azimuth Coverage	360°
Impedance	50 ohm

LNA Specifications

Port	UART/TTL
Frequency Range	1164MHz~1268MHz, 1525MHz~1615MHz
LNA Gain	30±3.0dB (Typ. @25°C)
Noise Figure	≤2 dB@25°C, Typ.
Output VSWR	≤1.8:1 typ. 2.0:1 max
Operating Voltage	3.0~5.0V DC
Operation Current	≤45mA

Mechanical & Environmental Specifications

Connector	TNC
Radome	ABS+PC
Weight	≤16g
Attachment Method	Through the connector
Operating Temperature	-40℃ ~ +85℃
Storage Temperature	-55℃ ~ +85℃
Humidity	95% No-condensing
Waterproof Rating	IP67
